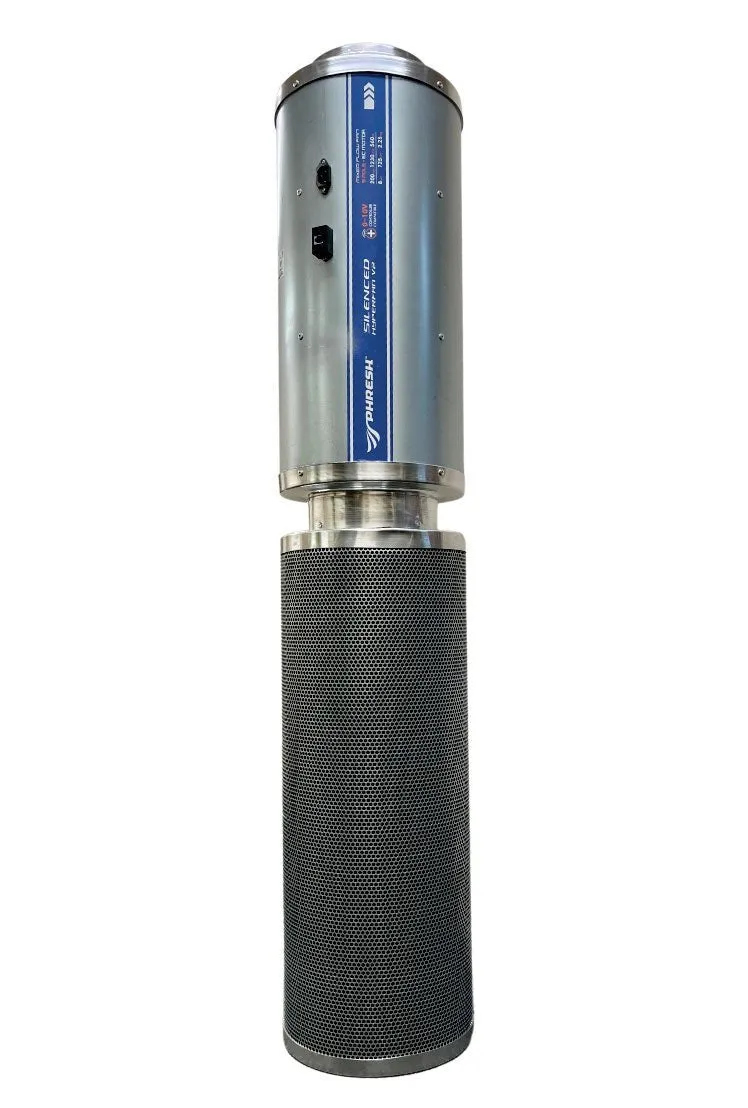

6 Inch Silenced Hyper Fan 150mm X 600mm Phresh Carbon Filter Set
This premium quality hydroponic ventilation kit includes a silenced 6 inch hyper fan and a phresh 150mm X 600mm carbon filter. Perfect for grow rooms and grow tents, this ventilation kit is not only extremely reliable but also provides your garden with a healthy source of fresh air and oxygen. The hyper fan's unique spring mounted housings further reduces vibration making it one of the quietest fans in the industry.Hyper Fans:

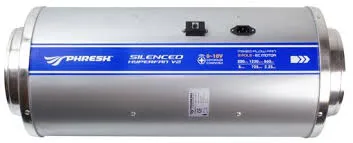

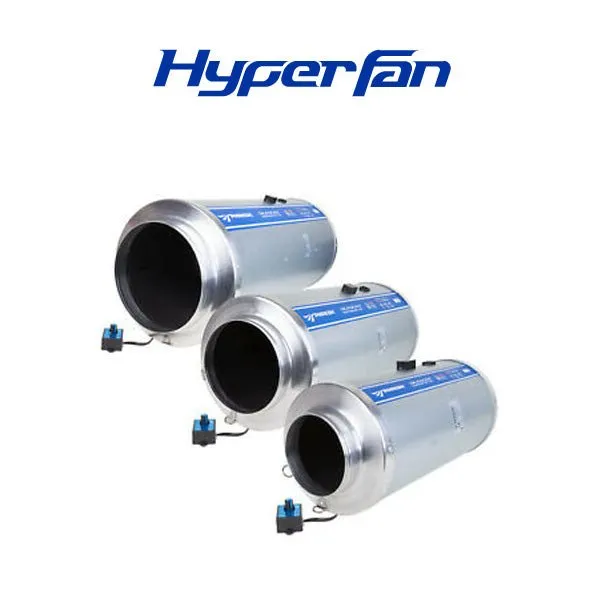

Hyperfan is the latest technology available in mixed-flow fans. Hyperfan utilise aircraft "taper blade technology" to fully optimise the aerodynamic movement of air over the fan blade. Silenced Hyperfans have a reduced dB of up to 70% over standard Hyperfans. Our unique spring-mounted housing further reduce vibration and help deliver some of the quietest fans in the industry (m3/h per Watt).
Features:
- New 9 pole digital EC "Brush-Less" motors
- High fan efficiency @7.85CFM per watt
- Higher linear airflow output than other fans
- Higher static pressure output than outer fans

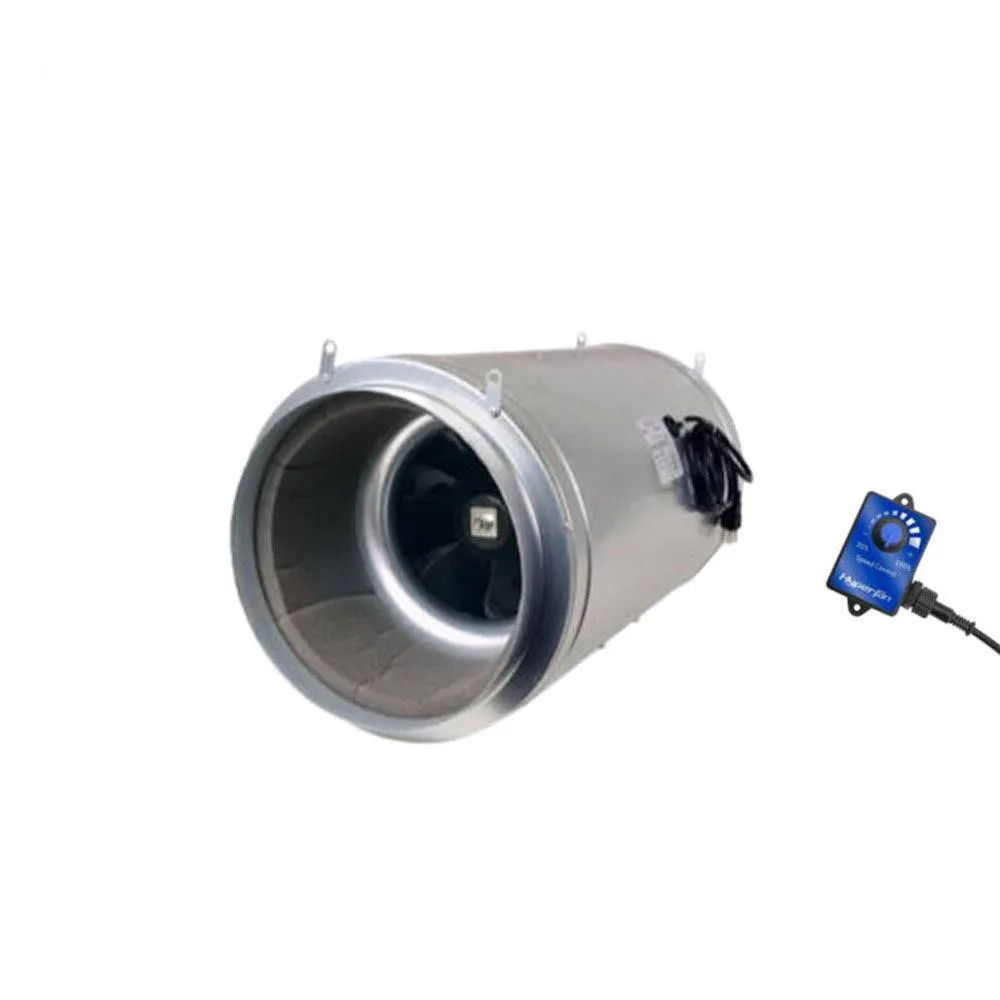

- Detachable, fully variable speed controller included
- Sturdy, steel housing and Abec 7 ball bearings
- 0-10V controller compatible via RJ9 or RJ11 cable
The importance of pressure (pa):
Static pressure is one of the most important factors in ventilation design. Simply put, static pressure refers to the resistance to airflow in a ventilation system's components and ductwork. The push of the air must be greater than the resistance to the flow. The higher the fans static pressure rating (pa) the greater it's ability to remove either hot or stale air from the environment.
150MM Hyper fan has it covered with 545pa on tap, one of the highest static pressures of any fan type. This coupling of taper blade technology optimised laminar stator design and "next gen" 9 pole digital EC motors results in a fan that delivers unrivalled high pressure, more linear airflow, quieter operations and the highest energy efficiency.
Specifications:
- Size: 150MM (6" Inch)
- Max Air Flow: 560 M^3/h - 330CFM - 156 LPS
- RPM: 5000
- Amps: 0.4A
- Weight: 5KG
- Fan Pressure: 545Pa/iwg2.2"
- Width: 238MM
- Length: 540MM
- Housing: Steel & Aluminium
- Blade Design: Mixed flow - laminar blade
- Climate Rating: T
- IPX Rating: IPX2
Phresh Filters:
Phresh Filters are world renowned as the very best carbon filter canister available. Using only sieved and de-dusted Australian activated carbon, every batch is analysed and tested to ensure it meets 950ID or higher. All carbon particle sizes are 4/12 US mesh or larger, ensuring the highest achievable airflow ratings. Every canister is weighed after manufacture to ensure consistency with every single filter made. Expect a minimum of 2 years life and up to five years life span in low humidity environments.
